Aha! Roadmaps | Starter roadmap

The starter roadmap is special. It lets you quickly sketch out your plans by dragging and dropping records onto the roadmap — and creates those records in the background, complete with dates and record relationships. So as you build a starter roadmap, you are also building out the data that will help you accomplish it.

Click any of the following links to skip ahead:

Create a starter roadmap

Navigate to Roadmaps Starter to create a starter roadmap. When you first load a starter roadmap, it will populate with any existing records in your workspace — but if it's blank, do not worry. Creating data for your roadmap and in your Aha! Roadmaps account is as simple as dragging and dropping.

An example of a starter roadmap in Aha!

First, select the type of starter roadmap you would like to build. You can build one around Releases, to show when you plan to complete work that relates to your strategy. Or you can build one around Features and Epics, to show when you plan to complete work that relates to your strategy, organized by theme. The Features view will also show you your themed work in the context of releases.

Next, start dragging record cards from the righthand side of your screen onto your roadmap, either new cards from the Create new list, or existing records from the Use existing dropdowns. You can add the following record types to your starter roadmap:

One way to populate this roadmap is to start with your strategy. Add your strategic goals, then the initiatives that will support them. Then work your way down to releases and epics — the containers for the work needed to accomplish your initiatives — and finish with features, the fundamental units of work your team will complete.

To link records together, drop one inside the other. For example, if a release will support an initiative, drop your release inside the initiative bar. If you want to add features to your release, drop them inside the release bar. If these container records get too large, you can always click the little arrow in the upper left of the card to collapse it and hide all child records from view.

As you drag and drop records onto the roadmap, you are simultaneously creating and linking real data in your account. Changes made on the starter roadmap will be reflected throughout the Aha! Roadmaps application. For example, if you move a feature from one release to another, it will also move on the features board (Features Board) and anywhere else the feature is displayed within a release. If you shift a release's dates on the starter roadmap, the release's release date will update.

Top

Add record details

When you first add a record to the starter roadmap, you have a chance to give it a name.

The next time you click on the record, you will open up its drawer view. From there, add any details you need to. You can choose to be thorough here and add descriptions, scores, attachments, assignees, and to-dos, or you can choose to build out a skeleton roadmap quickly and come back later for the details.

Top

Understand record type relationships

As you assemble your roadmap, it is important to understand the relationships that are being created when you drag and drop elements on the page.

  • When you add a goal, that goal will be linked to the workspace where the goal was added.

  • When you add an initiative or a release in a goal swim lane, the initiative or release will be linked to that goal.

  • When you add a feature to a release, that feature will be linked to that release.

However, features are not directly linked to a goal or initiative when you drag them onto the roadmap. This is done by design to provide teams with the flexibility to link features to different goals or initiatives rather than the release at large.

Top

Releases and features mode

Toggle between the Releases and Features modes to change the focus of the roadmap. The releases mode displays releases as bars on the roadmap — this is preferred if you want to focus on the timing and contents of your releases. The features mode is ideal if your plans are centered around epics. In this mode, epics are shown as bars on the roadmap instead of releases, but you can still include release dates for context if you choose to by expanding the Release dates section.

In features mode, when you add a new epic, it is automatically added to the first active release (or parking lot, if no active releases exist). If a feature is added to an epic, that feature will be added to the same release as the one that is assigned to the epic. If a feature is added on the roadmap without a corresponding epic, the feature will be assigned to the first active release or parking lot.

The features mode also shows you a timeline of your releases. Any releases related to the features and epics on the roadmap can be shown in the Release dates bar. To enable the Release dates bar, navigate to Customize view Show release dates.

The following logic is applied when you move features and epics on the starter roadmap:

  • When you move an epic to a new workspace, this changes the release for the epic but not the child features.

  • When you move a feature from one epic to another, the feature remains in its original release (and workspace).

Top

Additional options

The starter roadmap includes a variety of customization options so that you can craft the perfect visualization for your audience.

The More details button that appears when you hover on each bar of your roadmap can be used to customize the record. It includes three options:

  1. Edit name: Edits the name of the object that appears on the roadmap.

  2. Hide from export: Keeps the object visual on the roadmap but it will be hidden when exporting as a PDF, image, or Aha! Roadmaps presentation.

  3. Remove from roadmap: Removes the object from the roadmap but does not delete it from the Aha! Roadmaps application. You can also remove a record from the roadmap by dragging it into the Drop here to remove from roadmap zone in the lower-right corner of the page.

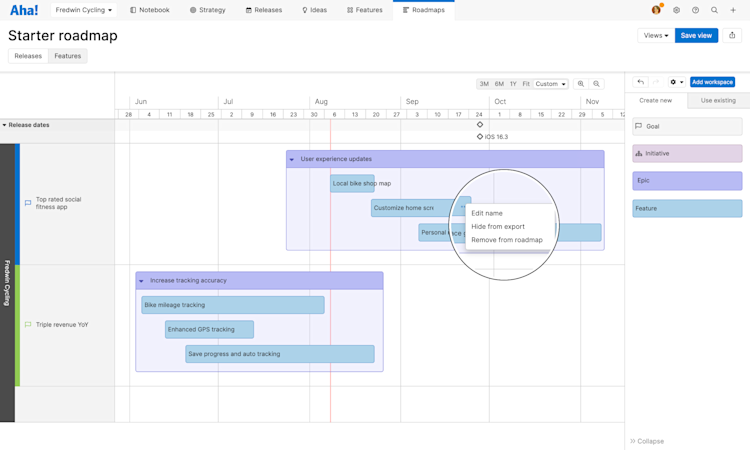

Starter roadmap with the more options menu expanded on a release.

To adjust the time frame and the way that dates are represented on the roadmap, use the Timeline menu on the right side of the roadmap.

  • Choose from Three-month, Six-month, or One-year views, or choose to Fit all of your data into one view. You can also choose to select a Custom date range. Your roadmap defaults to Fit when you first load it, and if you change any data, the page will automatically zoom to Fit your data again.

  • Use the Zoom in and Zoom out magnifiers to further customize your timeline.

When you save and share a starter roadmap externally, the date range in the view you share will be what you selected in the Timeline menu. This lets you control what part of your roadmap you want people to see — you can focus their attention without sharing your entire roadmap.

When you save and share a starter roadmap with other Aha! Roadmaps users in your account, they will initially see the date range you selected. They can then use the Timeline menu to adjust the view.

If the Record progress setting is enabled for your workspace, you can visualize progress on your roadmap by enabling the Customize view Show progress option.

Choose how you want colors to be displayed on the roadmap by setting the Customize view Color bars by option.

Any time you change your starter roadmap, you should save your changes. Click Save to save your existing roadmap, or click Views Save as to save your changes as a new roadmap.

Top

Set a default starter roadmap

The best saved views drive consistency across your team — or your entire organization. Workspace owners can set default views at the workspace or workspace line levels, so that everyone is using the agreed upon standard. To set defaults more broadly, you can set them at the workspace line level, so that child workspaces can inherit the defaults.

To set a default view, first Save one. Then navigate to Settings ⚙️ Workspace Default views and configure your new default.

A user will see your default view if they do not already have a working copy of a view on that page, or if they click Views Reset to default view.

If you update your default view and Save it again, that update will be reflected for anyone who views the default.

Top

Share your starter roadmap

With your starter roadmap completed, you can easily share it with your stakeholders by selecting one of the export options under the Share button on the top-right of the screen.

Use the Customize view dropdown to exclude a particular record type from appearing on an exported starter roadmap.

  • To fold your roadmap into a presentation, select Add to presentation. In your presentation, you can select the report's update frequency.

  • To add your roadmap to a dashboard, select Add to dashboard. Dashboards combine several Aha! Roadmaps views into one page to tell a complete story about your plans and progress.

  • To invite people outside of your Aha! Roadmaps account to view your roadmap, select Share as webpage.

  • For a static version of your roadmap, select Save as image or Save as PDF.
